Plastic recycling machine

  • PET washing line
  • PET washing line
PET washing linePET washing line

PET washing line

  • PET
  • Cushing
  • Washing
  • Drying
  • Product description: PET washing line is modular designed, combined with different machines according to materials, contaminants, production capacity, requirements of final products, etc.
  • INQUIRY

PET washing line

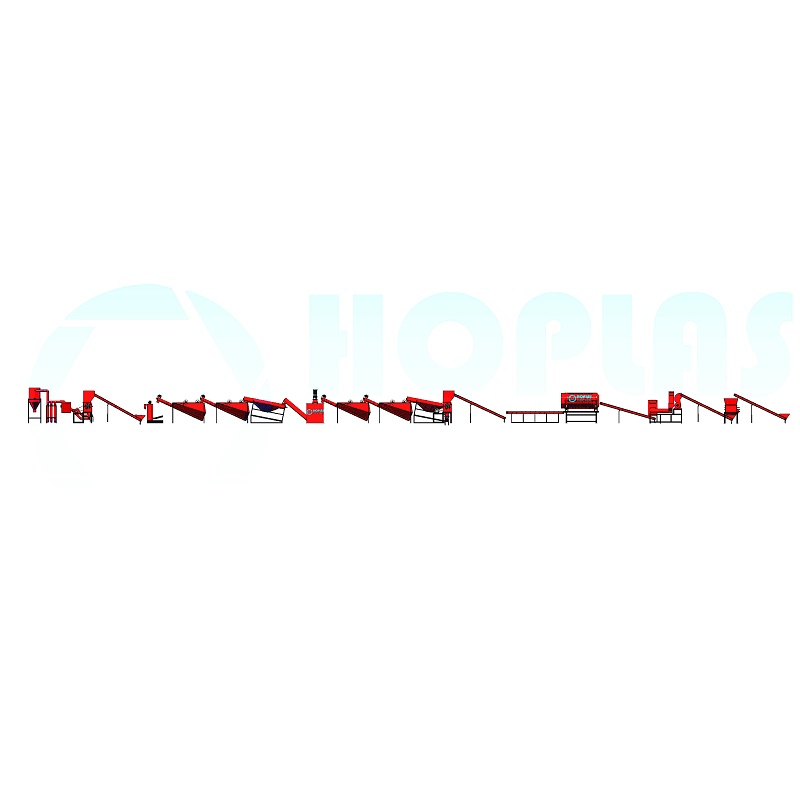

PET washing line is modular designed, combined with different machines according to materials, contaminants, production capacity, requirements of final products, etc.

Standard models for reference

Model

300kg/h

500kg/h

1000kg/h

2000kg/h

Remark

Steel belt

×

×

1set

1set

Convey bottle bales

Bale breaker

×

×

1set

1set

Break bottle bales

Belt conveyor

×

×

1set

1set

Convey the broken bales

Trommel

×

×

1set

1set

Screen out part of small impurities (sands, dusts, glasses, stones, metals, etc)

Belt conveyor

1set

1set

1set

1set

Convey the screened bottles

Label remover

1set

1set

1set

2 set

Remove labels (dry and wet)

Sorting belt

1set

1set

1set

1set

Manually sort the impurities, PVC, metals, glasses, etc, and classify the bottles by colors

Belt conveyor

1set

1set

1set

2 set

Convey the sorted bottles

Crusher

1set

1set

1set

2 set

Crush the bottles for easily washing

Screw conveyor

1set

1set

1set

1set

Convey the crushed bottles

Friction washer

×

1set

1set

1set

Remove the impurities with centrifuge and water

Washing tank

×

1set

2 set

2 set

Separate PP,PE and other floating impurities from PET

Hot washer

1set

1set

1set

2 set

Hot water with soda for removing the glues, oils, etc

Screw conveyor

1set

1set

1set

2 set

Convey hot washed flakes

Washing tank

1set

1set

2 set

2 set

Separate PP,PE and other floating impurities from PET

Centrifuge

1set

1set

1set

1set

Remove water with high speed centrifuge

Hot air system

1set

1set

1set

1set

The hot air will take away the moisture

Air separator

×

×

1set

1set

Separate the remained labels (PVC) and fines

Silo

1set

1set

1set

1set

Store washed flakes

1. The above models are standard lines, are flexible to add or remove machines according to certain situations.

2. The sorting table can be equipped with metal detector and magnetic separator

3. Hot washed can be heated by electricity, vapor, or fire directly

4. Parts contacted with materials and water are made of stainless steel

5. All PET washing lines should be designed according to materials, contaminants, production capacity, quality of final products, etc
